Wheeled Duct Rodder Cable Rod Helps Cable & Wire Placing in Ducts
Wheeled duct rodder performs apparent advantage over portable duct
rodder when the conduit or pipe is very long or complicated.
Wheeled duct rodder is made with a rubber wheel on the cage, which
makes it easier to transport at the job site. The wheel can be made
into pneumatic or solid rubber tire with iron wheel rim. Different
from portable duct rodder, wheeled duct rodder is often
manufactured with the pulling rod diameter varying from 11mm to
16mm.
Duct rodder with outboard wheels
Duct rodder with outboard wheels is commonly used for threading in
conduits. Two wheels on the duct rodder are installed on one side,
outside against the end of bottom frame. The outboard wheels are
designed for reducing the pressure on the ground. When moving the
duct rodder to the job site, press down hard on the grip of the
frame, towards the direction of the wheel, and move on the wheels.
Fibreglass Duct Rod.pdf

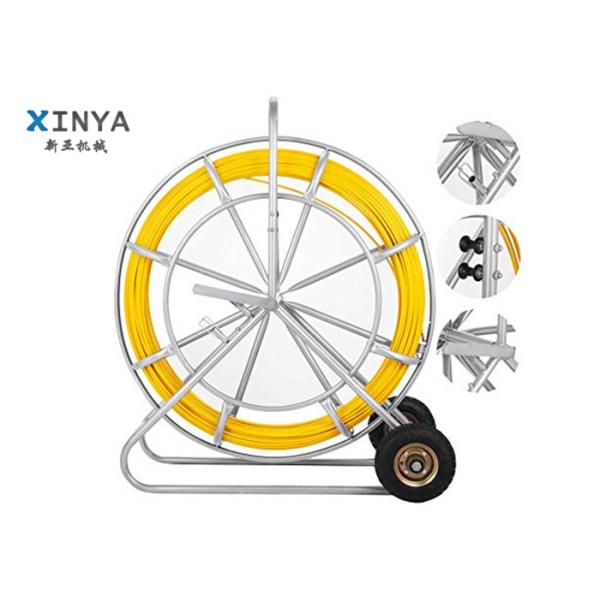

A wheeled duct rodder with a sturdy carrier and iron/rubber wheels.
Rod guide of the duct rodder, the rod must be pushed through the
rod guide out of the cage.
Pneumatic tire and solid tire comparison
There are usually two kinds of tires of the duct rodder, including
pneumatic tire and solid tire. Each has its advantage and
disadvantage. There is a list below for comparison of the two kinds
of tires.
Type | Description |
|---|
Pneumatic tire | Advantage | It weighs light and is full of elasticity. |
|---|
Disadvantage | It is easy to be broken by the bad environment on the construction
site. |
|---|
Solid tire | Advantage | It is sturdy and good at running on the complicated conditions. |
|---|
Disadvantage | It weighs a little bit heavy. |
|---|
Two tires of the duct rodder - pneumatic and solid.
A duct rodder with iron wheel.
Duct rodder with inboard wheels
Duct rodder with inboard wheels is specially designed for saving
storage space. Two wheels are installed on one side, inside against
the bottom frame. The usage of duct rodder with inboard wheels is
the same as duct rodder with outboard wheels.
Duct rodder with accessory kit, inboard wheels
Duct rodder with accessory kit is convenient for its accessory kit,
with most commonly-used tools in it. The accessory kit can be attached to the cage by nylon tires, through the hole that has been designed in the accessory kit. Rod
guide can be designed as pulley or ordinary metal hole.
A duct rodder with inboard wheel for space saving
An inboard wheeled duct rodder, an accessory kit for accessories
storage and convenient use at the job site.
Wheeled Duct Rodder Specification
Material and features can be seen on the page of fiberglass duct rodder. Specification table is listed below.
Wheeled Duct Rodder Specification
Item | Rod diameter | Bend radius | Rod length | Conduit diameter | Frame size |
|---|
WDR - 11 | 11 mm | 390 mm | 150 m - 300 m | 7.6 cm - 15 cm | 120 cm × 126 cm × 40 cm; 100 cm × 120 cm × 45 cm |
WDR - 12 | 12 mm | 450 mm | 150 m - 300 m | 7.6 cm - 16 cm | 120 cm × 126 cm × 40 cm; 120 cm × 130 cm × 45 cm |
WDR - 13 | 13 mm | 500 mm | 150 m - 300 m | 7.6 cm - 17 cm | 130 cm × 136 cm × 55 cm |
WDR - 14 | 14 mm | 550 mm | 150 m - 300 m | 7.6 mm - 19 cm | 130 cm × 136 cm × 55 cm |
WDR - 15 | 15 mm | 600 mm | 150 m - 500 m | 7.6 cm - 20 cm | 150 cm × 160 cm × 55 cm |
WDR - 16 | 16 mm | 650 mm | 150 m - 500 m | 10 cm＋ | 150 cm × 160 cm × 55 cm |
Note: other sizes can be ordered as customers' demand.
