| Brand Name : | XINYA |
| Model Number : | S2000 |
| Certification : | ISO |
| Price : | USD10-30/piece |
| Payment Terms : | L/C, T/T, |
| Supply Ability : | 1000 Pieces per Month |
| Delivery Time : | 7 workdays after payment |

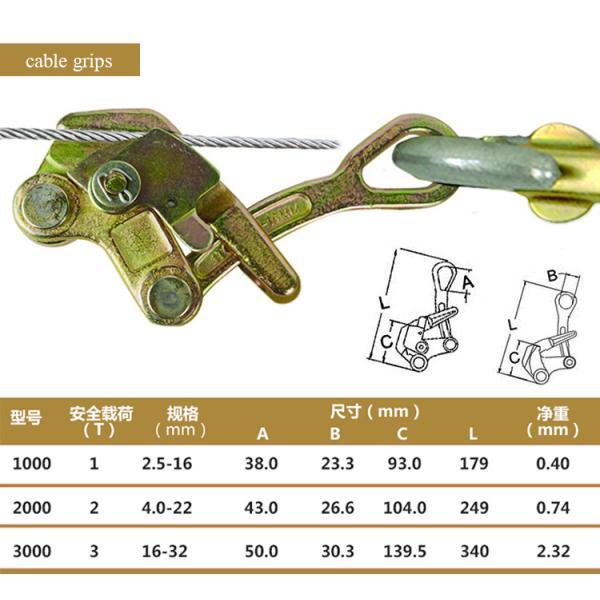

Specification
Item No. | Model No. | Rated Load (KN) | Applicable Conductor Diameter (MM) | Unit Weight (KG) |
0126 | SD-1000 | 10 | 2.6~15 | 0.75 |
0127 | SD-2000CL | 20 | 4~22 | 1.3 |
0103 | SD-3000CL | 30 | 16~32 | 2.5 |
Features:
1. Match with delicate smooth clamp mouth, minimal harm to wires.
2. Made by high tensile forged carbon steel.
3. Half-moon shape clamping jaw is suitable for pulling steel
strand and steel wire.
4. Planar shape clamping jaw is suitable for pulling electric
cable, will not damage the cable’s surface.
5. Clamp mouth with insurance device, will not jump wire.
6. After special heat treatment, the product has strong tension
stress, high meshing degree and not easy slip or distort.
7. Material: High Tensile Carbon Steel
8. Constructions: heat treatment and high temperature treatment
(Quenched and Tempered)
9. Finish: color zinc plated



Application

|
