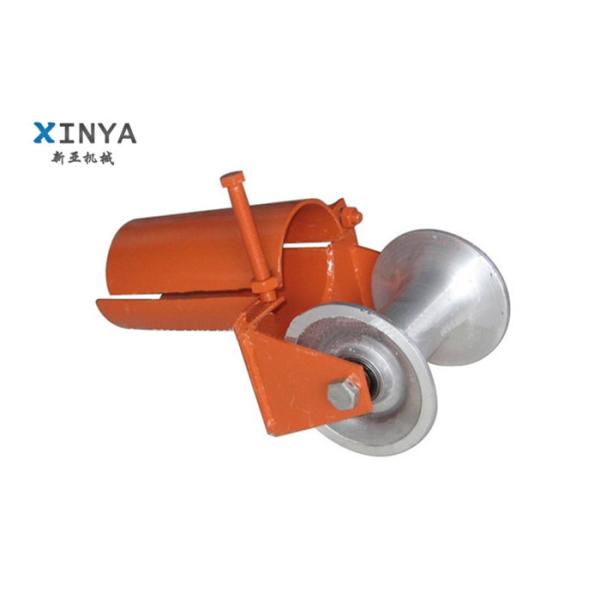

Cable Laying tools Orifice Type Cable Protection Roller Cable Pulley

Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.The ground cable rollers and corner cable rollers are made of aluminium, steel. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.

1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction.
2. They have are used to support conductors, OPGW,ADSS, communication lines.
3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials, and the frame of blocks are made of galvanized steel.
4. Cable pulley block are high strength and flexibility, easy to use, light weight, wearresisting, and long service life.

Cable Roller Specification

Model	Diameter of pipe hole	Weight
HCR11-80	D80	4.3kg
HCR11-90	D90	4.9kg
HCR11-100	D100	5.2kg
HCR11-130	D130	6.3kg
HCR11-150	D150	7.6kg
HCR11-180	D180	9.5kg
HCR11-200	D200	11kg

Packing & Delivery

Cable Laying Tool Protect Cable Roller

Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud - cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.

Electrical steel cable pulling roller, Straight line cable block be packed by carton.

Other types Aluminum Cable roller

Changshu Xinya Machinery Manufacturing Co., Ltd.is located in the beautiful and rich Chinese historical and cultural city - Changshu, Jiangsu. It is on the east of Shanghai, on the southern edge of Suzhou, west of Wuxi, north of the Yangtze River.It is convenient for transportation.

Changshu Xinya Machinery Manufacturing Co., Ltd. is founded in the eighties of last century, specializing in the production of various electrical equipment, forklift mast and so on. And in 2010,we passed through the ISO9001: 2000 and BV certification.

With support of customers, our products  have sold all over the word. According to the needs of the majority of users, we will increase the investment in science and technology,constantly develop new products, strengthen and improve product performance to meet the requirements of our customers.

Our main products are 1 ton, 2 tons, 3 tons, 5 tons, 8 tons JJM series cable pulling winch, hydraulic tensioner,hydraulic puller,cable laying euiqpments,high pressure hydraulic pump with hydraulic crimping tools,come along clamp,stringing pulley, cable roller and cable drum trailer, steel bar, aluminum alloy gin pole , And other power construction equipment and a variety of large tonnage forklift mast and a variety of special requirements of non-standard gantry.

Manufacturing process is complete, strong technical force, processing capacity is complete, finished products are strictly standardized technical quality testing, a sound quality control and after-sales service system, formed a certain scale of power equipment production capacity. Our existing variety of equipment are more than 80 sets, processing capacity, more sophisticated equipment (processing centers and CNC equipment 15 sets) to ensure product quality.
