    Optical Fiber Cable Winch Optic Fiber Recycle Machine Cable Hauling Machine

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : -
    Certification : ISO
    Price : get latest price
    Payment Terms : L/C, T/T,
    Supply Ability : 100sets/month
    Delivery Time : 10 workdays after payment
    • Product Details
    • Company Profile

    Optical Fiber Cable Winch Optic Fiber Recycle Machine Cable Hauling Machine

    Hot sell Optical Fiber Cable Winch Optic Fiber Recycle Machine


    Optical cable traction engine for pulling optical cable ,fiberglass cable, fiberglass duct rod, duct rodder, replace workerman for pulling, the force is 200kg, so reduce the member.

    1.The machine is mainly composed of engine, gearbox and transmission device. The clamping of the transmission device is used up and down to make the cable effective. Tractors with gasoline engine as power source, the transmission drive shaft gear chain, the chain bite transmission device, drive transmission belt, realize the straight line, the machine is also equipped with support bar to support machine in the operation of the cable force, keep the machine fixed transmission cables.
    2. The machine is easy to operate, and the four operating stops are (push, pull, idle, and slow) to select the desired position. Before changing gear, you must adjust the throttle to the idle state, and then control the accelerator on your hand when you hang it. Turn off the flame switch after use.


    Product Description

    Cable Hauling Machine is an electric machine for laying power cable (or communication cable).It can be used with cable tractor, hoist and other cable laying machine, which can save man power and material greatly and reduce construction cost effectively.

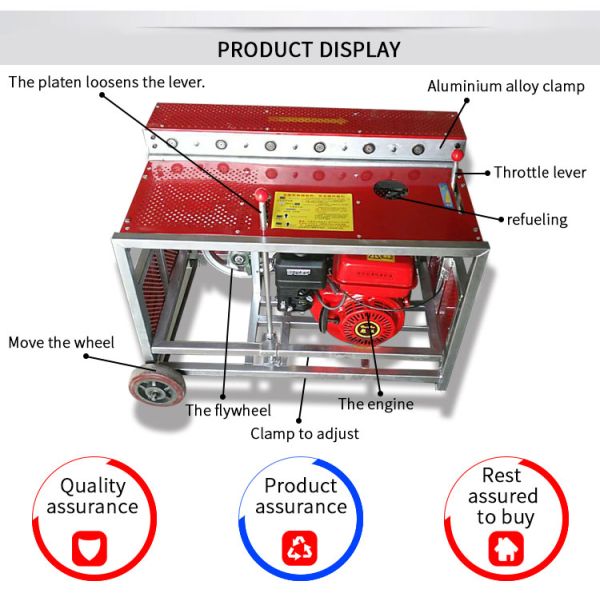

    Product Display

    Specification

    Quick Detail of Cable Hauling Machine:

    Traction

    >300KG

    Pulling Speed

    1m -1.6 m/s

    Outlet opening size

    5mm*45mm

    Belt Size

    1000m*60mm

    Engine Gasoline Tank

    4L,(92#,93#Gasoline)

    Total Power

    4.3KW

    Machine Size

    80*60*80cm

    Machine Weight

    90KG

    Line Bracket Dimension

    Out diamerer:110cm

    Inner Diameter:85cm

    Suitable Diameter Of Cable

    Cable wire rope,Cable steel


    Part of Cable Hauling Machine details:


    Application

    Cable Hauling Machine widely used,can replace the artificial pull, the speed is quick, does not injure the cable.
