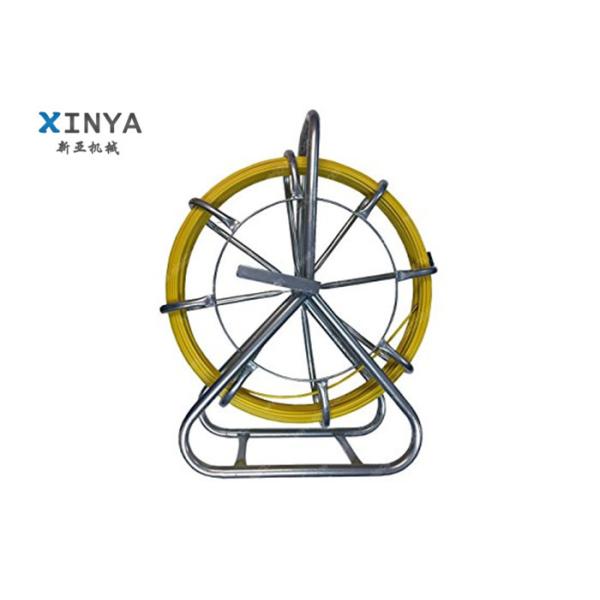

    12mm Fiberglass Push Rod Cable Pulling Tools Tracing Duct Rod

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : P
    Certification : ISO
    Price : Get latest price
    Payment Terms : L/C, T/T,, Western Union
    Supply Ability : 100sets/day
    Delivery Time : 10-15 workdays after payment
    MOQ : 5 set
    • Product Details
    • Company Profile

    12mm Fiberglass Push Rod Cable Pulling Tools Tracing Duct Rod

    12mm Fiberglass Push Rod Cable Pulling Tools Tracing Duct Rod


    FRP rod information

    1. Light weight, durable, good resistance to chemical and corrosion.

    2. High tensile strength and bending properties to make it go through narrow pipes easily.

    3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature

    4. Rod jacket: developed composite materials, hard, smooth and wear-resistant.

    5. meter marks: available

    6. Rod colors: yellow, other colors are optional

    7. Rod Length (m): 30-350m

    8. Rod Diameter: 4mm-16mm


    Frame and reel information

    1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand.

    2. Tilting type handle, convenient for pushing and pulling.

    3. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.

    4. Frame color: yellow, other colors are available.

    Data Sheet

    Fibreglass Duct Rod.pdf

    1 - Glass Reinforced Composite core:
    General properties
    PropertyValue
    Iner coreE-Glass Fiber
    Glass Content of Inner Part75-80%
    Material of Pulling RodEpoxy fiber glass (inner)
    High density Polyethylene(outer)
    Density>1.9 gr/cm3
    Diameter Tolerance± 0.10mm
    Work situation temperature- 40 0C to +800C
    Mechanical properties
    PropertyValue
    Minimum pulling strength4000 N±5%
    Tensile Modulus>30000 Mpa
    Consistency of rod150gr/m±5%
    Flexural Modulus>30000 Mpa
    Elongation at Break2.5-3%
    2 - Polyethylene cover
    Material:
    Medium Density Polyethylene Resin for the insulating and jacketing of Telecommunication Cables.
    PropertyValue
    Tensile Strength>15N/mm2
    Environmental Stress & crack resistance>1000 hr.
    Heat StabilityOK.
    Carbon BlackOK.
