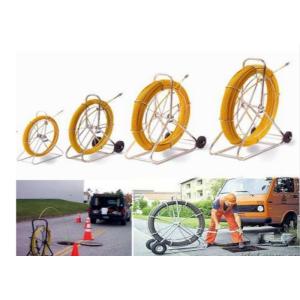

Cable Pulling Tools 10mm Cobra Conduit Duct Rods Fiberglass Duc Rod
Application
1. Used to install pulling ropes and winch ropes into ducts,ready
for cable pulling operations.
2. Available push pull rodder
3. With cable roller
4. Lightweight and non-conductive
Features:
Light weight, high tensile strength.
Polyethylene coating for good electric insulativity, smooth
surface, resistance to acid and corrosion.
Elastic body for easy passing through narrow pipes and bending
conduits.
Copper wire inside for tracing if needed.
Good friction and heat resistance allow the rod to travel longer
distance in the conduits and to be operated in harsh environment.
Meter marks on the protective layer of the rod for measuring
distance, printed by professional printing machine.
Waterproof and anti-ultraviolet for durable use.
Hand operated brake for controlling payout of the pulling rod. The
rotating and stopping of the rod can be easily controlled by the
brake.
Some frames are double-barreled reinforcement design for a more
sturdy structure.
Small bending radius allows the rod itself passing through tight
bends in the ducts.
Accessory or repair kit is available attached to the frame for
greater versatility and easier ducting.
Specification:
Rod diameter: 4mm - 16mm.
Length of fiberglass rod: 30m - 500m.
Working temperature: -40°C to + 80°C (-40°F to 176°F).
Minimum bend radius: 4" (That is for 4mm rod diameter, other rods
with larger diameter have larger bend radius).
Max pulling strength: 4.5T (For rod diameter 16mm, other rods with
smaller diameter have less pulling strength).
Frame size: 160mm × 450mm × 500mm, 170mm × 600mm × 750mm, etc.
(maximum size: 550mm × 1500mm × 1600mm).
Wheel: pneumatic/iron tyre or no wheel.
Fiberglass rod color: yellow, blue, white, red, black.
Package: plastic wrap and then into carton.
Operation instruction: see the Technology page.
Note: we offer various sizes and colors for any specific requirement as
customers' demand.
| 1 - Glass Reinforced Composite core: |
| General properties |
| Property | Value |
| Iner core | E-Glass Fiber |
| Glass Content of Inner Part | 75-80% |
| Material of Pulling Rod | Epoxy fiber glass (inner) |
| High density Polyethylene(outer) |
| Density | ＞1.9 gr/cm3 |
| Diameter Tolerance | ± 0.10mm |
| Work situation temperature | - 40 0C to +800C |
| Mechanical properties |
| Property | Value |
| Minimum pulling strength | 4000 N±5% |
| Tensile Modulus | ＞30000 Mpa |
| Consistency of rod | 150gr/m±5% |
| Flexural Modulus | ＞30000 Mpa |
| Elongation at Break | 2.5-3% |
| 2 - Polyethylene cover |
| Material: |
| Medium Density Polyethylene Resin for the insulating and jacketing
of Telecommunication Cables. |
| Property | Value |
| Tensile Strength | ＞15N/mm2 |
| Environmental Stress & crack resistance | >1000 hr. |
| Heat Stability | OK. |
| Carbon Black | OK. |
