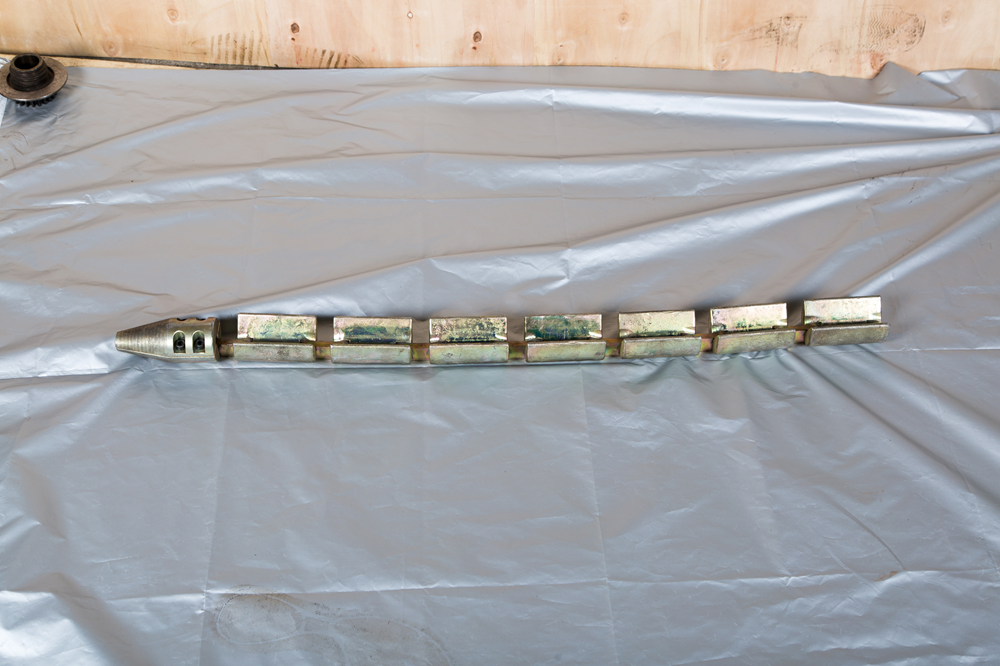

    Heavy-Duty Anti-Twist Running Board for 11-16mm OPGW Cable with Corrosion-Resistant Coating

    Ask Lasest Price
    Brand Name : Xinya
    Model Number : ZBP-20
    Certification : ISO9001
    Price : US $100 - 400 / Set
    Payment Terms : T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 10 days after payment
    • Product Details
    • Company Profile

    Heavy-Duty Anti-Twist Running Board for 11-16mm OPGW Cable with Corrosion-Resistant Coating

    Heavy-Duty Anti-Twist Running Board for OPGW Installation | Guide Tool for 11–16mm Fiber Cable

    Product Overview

    The Heavy-Duty Anti-Twist Running Board is a specialized guiding tool designed for safe and efficient OPGW (Optical Ground Wire) installation on transmission lines. Engineered for cables with 11–16 mm diameter, this running board keeps the cable stable and prevents rotational stress, ensuring smooth stringing in both overhead and long-span projects. Built from high-strength alloy steel and precision-machined rollers, it provides exceptional durability and reliability in demanding field environments.


    What Is an Anti-Twist Running Board? (Definition)

    An anti-twist running board is a mechanical guide device used during conductor or OPGW stringing to maintain cable orientation and eliminate twisting as it travels through pulleys and blocks. It ensures uniform tension distribution, prevents fiber damage inside OPGW, and supports accurate positioning during power line construction.


    Key Features

    • Compatible with 11–16 mm cables including OPGW, ADSS, and ground wires

    • Anti-rotation design prevents torsional stress during pulling

    • Heavy-duty steel frame for long service life and high load capacity

    • Precision rollers that allow low-friction cable movement

    • Corrosion-resistant coating suitable for outdoor and coastal environments

    • Stable guide structure supports smooth passage through stringing blocks

    • Lightweight and easy to mount, enabling quick installation on site


    Product Advantages

    • Protects OPGW fibers by eliminating twist and minimizing bending force

    • Improves construction efficiency with stable, guided cable movement

    • Reduces friction and wear, extending cable and equipment life

    • Enhanced safety for workers and transmission line infrastructure

    • Reliable performance in high-voltage and long-span operations

    • Compatible with most industry-standard stringing tools and pulleys


    Applications

    This anti-twist running board is ideal for:

    • OPGW installation on 220kV / 500kV / 750kV transmission lines

    • Long-span and mountain-line stringing projects

    • ADSS and ground wire stringing

    • Utility, power grid construction, and maintenance operations

    • Projects requiring precise tension control and cable protection


    Data Sheet
    Item No.
    Model
    Rated load (KN)
    Anti-twisting torque force (N.m)
    OPGW size range (mm)
    Overall weight (kg)
    20118
    ZBP-20
    20
    32
    11-16
    2 X 12.5


    FAQs

    1. What cable sizes can this running board support?

    It is designed for 11–16 mm OPGW, ADSS, and similar conductors.

    2. Why is anti-twist protection important for OPGW?

    OPGW contains optical fibers. Twisting can cause severe fiber deformation, signal loss, or long-term damage. The running board ensures stable, twist-free pulling.

    3. Is it compatible with standard transmission line pulleys?

    Yes, the running board fits most U-shaped, single-sheave, and large-diameter stringing blocks.

    4. Can it be used in harsh environments?

    Absolutely. Its high-strength steel frame and anti-corrosion finish are designed for outdoor, high-humidity, and high-altitude conditions.

    5. Does it require maintenance?

    Only basic cleaning and lubrication of rollers after extended use.
