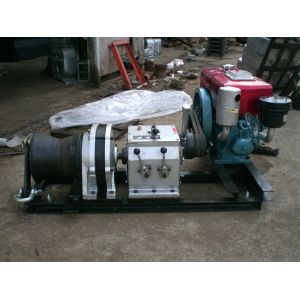

5-Ton Capacity Diesel Engine Powered Capstan Winch for High-Speed Cable Pulling and Lifting

Changshu Xinya Machinery Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5-Ton Capacity Diesel Engine Powered Capstan Winch for High-Speed Cable Pulling and Lifting from wholesalers

    Buy cheap 5-Ton Capacity Diesel Engine Powered Capstan Winch for High-Speed Cable Pulling and Lifting from wholesalers
    • Buy cheap 5-Ton Capacity Diesel Engine Powered Capstan Winch for High-Speed Cable Pulling and Lifting from wholesalers
    • Buy cheap 5-Ton Capacity Diesel Engine Powered Capstan Winch for High-Speed Cable Pulling and Lifting from wholesalers

    5-Ton Capacity Diesel Engine Powered Capstan Winch for High-Speed Cable Pulling and Lifting

    Ask Lasest Price
    Brand Name : XINYA
    Model Number : JJM-5BC
    Certification : ISO
    Price : US $1,800 - 1,950 / Set
    Payment Terms : L/C,T/T,
    Supply Ability : 500 set/sets per month
    Delivery Time : 7 days after payment
    • Product Details
    • Company Profile

    5-Ton Capacity Diesel Engine Powered Capstan Winch for High-Speed Cable Pulling and Lifting

    5T Diesel-Driven Capstan Winch for Line Construction | High-Speed Cable Pulling & Lifting Machine


    Overview

    This 5-ton diesel-driven capstan winch is engineered for overhead transmission line installation, heavy-duty cable pulling, and tower lifting operations. Equipped with a robust diesel engine and shaft-driven mechanism, it provides high-speed line pulling, stable torque, and reliable performance in remote outdoor environments. Ideal for power utility contractors, construction teams, and telecom operators, it delivers efficient and safe cable handling for demanding field projects.


    Key Features

    • 5-Ton Pulling Capacity
      Handles heavy conductor pulling, lifting, and hauling tasks with stability.

    • Diesel Engine Powered
      Reliable engine ensures strong output without dependence on external electricity.

    • Shaft-Driven Mechanism
      Ensures efficient torque transmission and high-speed line operation.

    • Heavy-Duty Steel Construction
      Durable frame suitable for harsh outdoor conditions.

    • High-Speed Operation
      Optimized drum and capstan design for fast line pulling and lifting.

    • Portable Field Design
      Equipped with lifting points or skid/wheel mounting for easy transport.


    Product Advantages

    • Ideal for Remote Locations
      Operates independently of power supply thanks to the diesel engine.

    • Fast and Efficient
      High-speed operation reduces project time for conductor or cable installation.

    • Reliable & Durable
      Shaft-driven mechanism and steel frame ensure long-term durability.

    • Low Maintenance
      Simple engine and gearbox maintenance extend lifespan and reduce downtime.

    • Versatile Applications
      Suitable for conductor stringing, cable pulling, tower lifting, and heavy construction hauling.


    Technical Data

    Model TypeGearPulling Force(KN)Pulling Speed(m/min)Power(KW)Weight(KG)
    JJM-5BCSlow504.510137
    Fast258.5
    ReverseNO Lifting4


    Applications

    • Transmission line installation

    • Overhead conductor pulling and tensioning

    • Tower and pole lifting

    • Telecom cable installation

    • Substation & power distribution projects

    • Heavy construction material hauling

    • Long-distance cable pulling and lifting


    FAQ

    Q1: Can this winch be used in remote areas without electricity?
    A1: Yes, the diesel engine allows independent outdoor operation.

    Q2: Is the line speed adjustable?
    A2: Yes, multi-speed gearbox provides flexibility for different work stages.

    Q3: Does the shaft-driven mechanism improve performance?
    A3: Yes, it ensures efficient torque transmission and smooth high-speed operation.

    Q4: What accessories are available?
    A4: Optional wire ropes, pulley blocks, braking devices, and mounting options are available.

    Q5: How often is maintenance required?
    A5: Only routine engine servicing, lubrication, and brake inspection are needed.
