Heavy Duty Manual Tirfor Winch 0.8–5.4T Capacity with 20m Wire Rope
for Construction Hoist

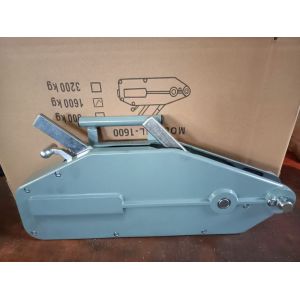

The Manual Mild Steel Tirfor Machine is a heavy-duty wire rope
pulling and lifting device designed for construction, maintenance,
and industrial applications. With a capacity range from 0.8T to
5.4T and a standard 20m wire rope, this Tirfor hoist provides
reliable performance for vertical lifting, horizontal pulling,
tensioning, and positioning tasks. Made from high-strength mild
steel, it ensures durability, stability, and long service life even
under tough working conditions. The manual operation allows safe
control without requiring an external power source, making it ideal
for remote job sites and outdoor projects. This portable and
efficient Tirfor machine is widely used in building construction,
equipment installation, power line work, pipeline projects, and
emergency rescue operations. It offers smooth operation, strong
load holding capability, and easy maintenance, making it a
practical lifting solution for professionals who need dependable
and flexible hoisting equipment.
This Tirfor machine operates by manually driving the internal
mechanism to move the wire rope smoothly in both directions. It
requires no electricity, making it ideal for remote areas, outdoor
projects, pipeline construction, power line installation, and
emergency rescue operations. The compact and portable structure
allows workers to carry and operate it easily, ensuring efficient
performance where cranes or powered hoists cannot be used.
Equipped with a standard 20m wire rope and safety hook, the machine
ensures reliable load holding and consistent pulling force. The
ergonomic handle provides comfortable operation, while the internal
clamping system guarantees strong grip under heavy loads. The
machine is simple to operate and requires minimal maintenance,
making it a cost-effective lifting solution for contractors and
engineering teams.
Whether you need a dependable tool for vertical lifting, horizontal
pulling, cable tensioning, machine installation, or material
handling, this Manual Mild Steel Tirfor Machine delivers reliable
performance and maximum safety for professional job sites.
【Product Highlights / Key Features】
• Heavy-duty mild steel construction for durability and long
service life
• Capacity options from 0.8T to 5.4T for various lifting and
pulling tasks
• Standard 20m wire rope suitable for vertical lifting and
horizontal pulling
• Smooth, controlled manual operation without electricity
• Compact and portable design for easy transport on job sites
• Strong load-holding mechanism ensures safe and stable performance
• Ideal for construction, installation, maintenance, and rescue
work
• Easy to maintain and simple to operate with minimal training
【Technical Specifications】
Model Capacity: 0.8T / 1.6T / 3.2T / 5.4T
Material: Mild Steel
Lifting / Pulling Height: 20 meters (standard)
Operation: Manual
Application: Lifting, pulling, tensioning, positioning
Wire Rope Type: Steel wire rope with safety hook
Usage Environment: Construction sites, industrial workshops,
outdoors, rescue sites
Technical Data
| Model item | VIT-800 | VIT-1600 | VIT-3200 | VIT5400 |
|---|
| Rated forward hand power(N) | 341 | 438 | 438 | 745 |
| Rated capacity(KG) | 800 | 1600 | 3200 | 5400 |
| Rated forward travel(MM) | ≥52 | ≥55 | ≥28 | ≥30 |
| Rope diameter(MM) | 8.3 | 11 | 16 | 20 |
| Wire rope safty factor load capacity(TIMES) | 5 | 5 | 5 | 5 |
| Max travelling load(KG) | 1200 | 2400 | 4000 | 8000 |
| Net weight(KG) | 6.4 | 12 | 28 | 56 |
| Max outer size(MM) A | 426 | 545 | 660 | 930 |
| B | 238 | 284 | 325 | 480 |
| C | 64 | 97 | 116 | 152 |
| L1(CM) |
| 80 | 80 | 68 |
| L2(CM) | 80 | 120 | 120 | 112 |
| Packing (L*W*H)(CM) | 43*6.4*24 | 54.5*9.7*29 | 66*12*35 | 110*110*73 |
【FAQ – SEO Friendly】
Q1: What is a manual Tirfor machine used for?
A: It is used for lifting, pulling, tensioning, and positioning
loads in construction, installation, maintenance, and rescue
operations.
Q2: Does the Tirfor require electricity?
A: No. It is fully manual and can be used in remote sites without
power supply.
Q3: What wire rope length is included?
A: The standard package includes a 20m wire rope, and customized
lengths are available upon request.
Q4: What is the maximum capacity of this Tirfor machine?
A: It supports capacities from 0.8T up to 5.4T, suitable for
heavy-duty applications.
Q5: Is it easy to carry to different job sites?
A: Yes. Its compact and portable design makes it ideal for field
and outdoor use.
