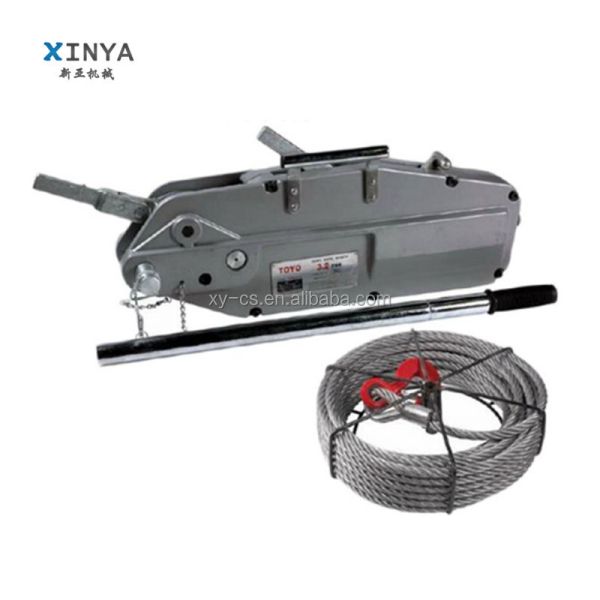

5.4 Ton Capacity Tirfor Hoist with 20 Meter Steel Wire Rope for Manual Cable Pulling

Cable Pulling Tools Tirfor Hoist 5.4 Ton With 20 Meter Steel Wire Rope


Introduction

For lifting, pulling and positioning heavy loads. The models in the TIRFOR TU range are unrivalled in terms of durability and sturdiness.

They can be used to lift, pull and position loads over great distances depending on the wire rope length. They are suitable for use in numerous configurations and are the ideal solution for use in professional applications; they are operated by a simple lever Option: the load capacity of the Tirfor system can be increased by using sheave blocks.

Portable hoist to lift and pull loads, for utilisation in numerous configurations with long cable lengths


Quick information

1. Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.
2. All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3. Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
4. The hoist has low maintenance requirements and is easy service.
5. Overload protection ensures high personal safety when in operation.
6. Specially built-in shear pins can be replaced without removing the load.


Feature

1. Low weight—quick installation

2. No limitation in terms of cable length

3. Manageable, light-weight, robust, powerful

4. Increase load capacity with deflection sheaves

5. Overload protection

6. Precise load placement within millimetres


Specifications

Item NoVIT-800VIT-1600VIT-3200VIT-5400
Lifting Capacity (kg)800160032005400
Pulling Capacity (kg)13002800600010125
Tested to (kg)15003000600010125
Steel wire rope dia. (mm)IWRC 8.3IWRC 11IWRC 16IWRC 20
Wire rope safety factory load caoacity (mm)5×WLL5×WLL5×WLL5×WLL
Breaking strength of wire Rpoe (kg)543096801720027000
Net weight (without wire Rope) (kg)6.4122328



Please tell us the following information in your enquiry:

1. Dia of duct rod(mm) ?

2. Length of pulling rod(KN) ?

3. Quantity?

We'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
